| Model No. |
SM-13D-B/P |
SM-13TD-B/P |
SM-15D-B/P |
SM-15TD-B/P |
SM-20D-B/P |
SM-20TD-B/P |
SM-20TP-B/P |
| Drilling Capacity ( steel (60kg./sq.mm) / cast Iron ) |
Ø 13 / Ø16 |
Ø 13 / Ø16 |
Ø 15 / Ø18 |
Ø 15 / Ø18 |
Ø 20 / Ø25 |
Ø 20 / Ø25 |
Ø 20 / Ø25 |
| Tapping capacity ( steel (60kg./sq.mm) / cast Iron ) |
……. |
M8 / M10 |
……. |
M8 / M10 |
……. |
M12 / M 14 |
M12 / M 14 |
| Minimum size of tapping Operation |
……. |
M 4 |
……. |
M 4 |
……. |
M 4 |
M 4 |
| Spindle |
|
|
|
|
|
|
|
| Spindle Nose Taper ( T ) |
JT 6 ( Male) |
MT-1 (Female) |
MT-2 (Female) |
MT-2 (Female) |
MT-2 (Female) |
MT-2 (Female) |
MT-2 (Female) |
| Spindle Stroke ( S ) |
100 |
100 |
125 |
125 |
125 |
125 |
125 |
| No.of Spindle Speeds |
4 |
4 |
4 |
4 |
8 |
8 |
8 |
| Speed Range(std.) without Back Gear |
560-710-1120-1600 |
355-500-710-1000 |
560-1000-1800-3150 |
355-650-1150-2000 |
560-1000-1800-3150 |
355-630-1120-2000 |
355-630-1120-2000 |
| Speed Range(std) with Back Gear |
……. |
……. |
……. |
……. |
80-160-280-450 |
56-100-180-280 |
56-100-180-280 |
| Speed Range(H) without Back Gear (2Sp. Motor)* |
……. |
……. |
……. |
……. |
560 ~ 6250 |
……. |
……. |
| No. of Autofeeds |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
| Rate of Autofeeds ( mm / rev ) |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
| Auto Feed Engagement (std) |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
| Auto Feed Engagement (optional) |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
…….. |
| Spindle Feed |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Lead Screw. |

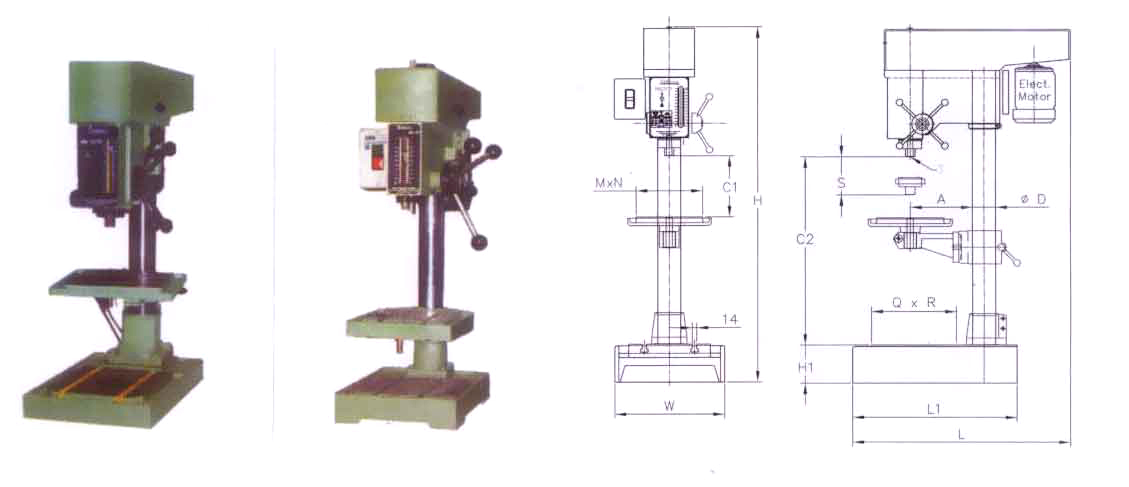

| Spindle Axis to column Face ( throat ) ( A ) |
154 |
154 |
195 |
195 |
195 |
195 |
195 |
| Spin. Nose to work Table (min./ max) - B / P (C1) |
0 / 360-0.660 |
0 / 360-0.660 |
0/300 - 0/700 |
0/300 - 0/700 |
0/300 - 0/700 |
0/300 - 0/700 |
0/300 - 0/700 |
| Spin. Nose to Base Plate (min./ max) - B / P (C2) |
120 /480-120/780 |
120 /480-120/780 |
200/600-350/1200 |
200/600-350/1200 |
200/600-350/1200 |
200/600-350/1200 |
200/600-350/1200 |
| Cloumn Diameter (O.D.) ( D ) |
60 |
60 |
73 |
73 |
73 |
73 |
73 |
| Clamping Area on work Table ( M x N ) |
180 x 200 |
180 x 200 |
220 x 220 |
220 x 220 |
220 x 220 |
220 x 220 |
220 x 220 |
| Clamping Area on Base Plate ( Q x R ) |
230 x 230 |
230 x 230 |
270 x 290 |
270 x 290 |
270 x 290 |
270 x 290 |
270 x 290 |
| T Slots on Work Table ( Size / Pitch / Nos.) |
10 / 100 / 2 |
10 / 100 / 2 |
12 / 115 / 2 |
12 / 115 / 2 |
12 /115 /2 |
12 /115 /2 |
12 /115 /2 |
| T Slots Base Plate (Size / Pitch / Nos.) |
12 / 100 / 2 |
12 / 100 / 2 |
14 / 160 / 2 |
14 / 160 / 2 |
14 /160 /2 |
14 /160 /2 |
14 /160 /2 |
| Motor 3Ph. TEFC (KW / HP) |
0.37 / 0.5 |
0.37 / 0.5 |
0.37 / 0.5 |
0.37 / 0.5 |
0.55 / 0.75 |
0.55 / 0.75 |
0.55 / 0.75 |
| Motor RPM |
1500 |
1000 |
1500 |
1000 |
1500 |
1000 |
1000 |
| Electric Supply |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
| Control Voltage |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
| Overall size of Base Plate - B ( W x L1 x H1 ) |
280 x 370 x 65 |
280 x 370 x 65 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
| Overall size of Base Plate - P ( W x L1 x H1 ) |
300 x 400 x 85 |
300 x 400 x 85 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
350 x 520 x 110 |
| Belt Type |
V - Belt |
V - Belt |
V - Belt |
V - Belt |
V - Belt |
V - Belt |
V - Belt |
| Overall size of Machine - B ( W x L x H ) |
280 x 575 x 900 |
280 x 575 x 900 |
350 x 700 x 1135 |
350 x 700 x 1135 |
350 x 700 x 1135 |
350 x 700 x 1135 |
350 x 700 x 1135 |
| Overall size of Machine - P ( W x L x H ) |
300 x 600 x 1200 |
300 x 600 x 1200 |
350 x 700 x 1735 |
350 x 700 x 1735 |
350 x 700 x 1735 |
350 x 700 x 1735 |
350 x 700 x 1735 |
| Machine Weight in Kgs. ( B / P ) |
52 / 70 |
52 / 70 |
130 / 140 |
130 / 140 |
130 / 140 |
130 / 140 |
130 / 140 |
