| Model No. |
QD-08 |
QD-12 |
QD-12 L |
QD-25 |
CFU-10 |
| Drilling Capacity (steel (60kg./sq.mm) / cast Iron) |
Ø8 / Ø12 |
Ø12 / Ø20 |
Ø12 / Ø20 |
Ø12 / Ø20 |
Ø10 / Ø13 |
| Max.Spindle Stroke mm |
80 |
100 |
150 |
150 |
100 |
| Max. Spindle Speeds Range RPM |
800 ~ 3000 |
800 ~ 3000 |
800 ~ 3000 |
250 ~ 800 |
300 ~ 3000 |
| Quill Fed Rate (Hydraulic) mm/min |
50 ~ 800 |
50 ~ 800 |
50 ~ 800 |
50 ~ 800 |
10 ~ 50 (CAM) |
| Maximum System Pressure Kg./sq.cm |
30 |
30 |
30 |
30 |
---------- |
| Spindle Ouyput Power Kw |
0.37 |
0.75 |
0.75 |
1.5 |
0.75x1500 R |
| Maximum Operational Thrust Kg. |
200 |
800 |
800 |
940 |
---------- |
| Nett Weight for basic unit with Motor in Kgs.(Approx.) |
115 |
95 |
110 |
150 |
115 |

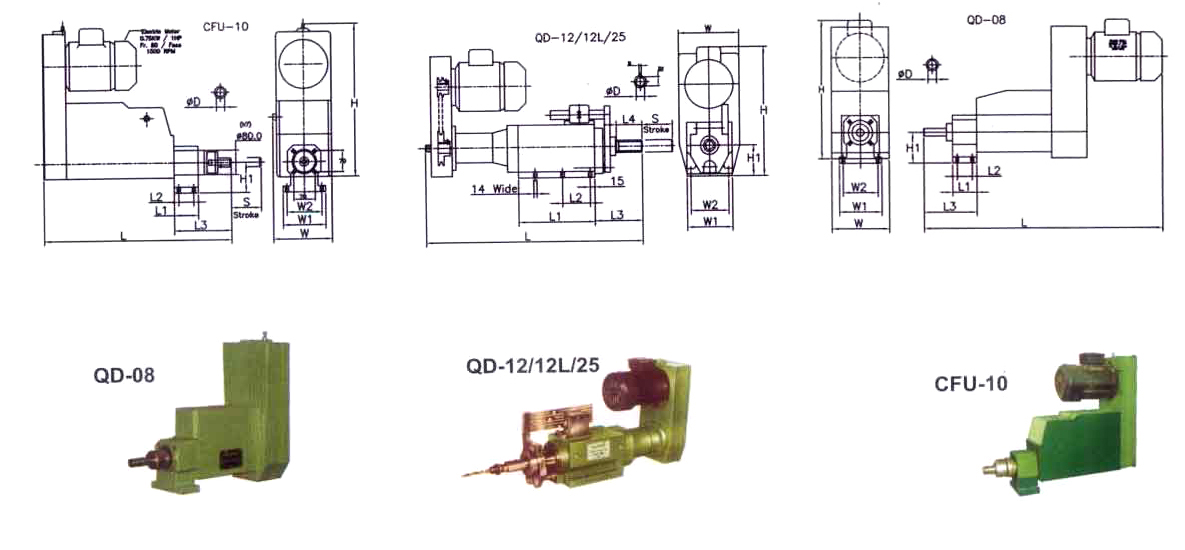

| Overall dimension ( L x H x W ) mm |
780x490x190 |
720x450x200 |
820x450x200 |
900x500x200 |
620x500x192 |
| Spindle Nose Bore ØD |
Ø16 H7 |
Ø28 H7 |
Ø28 H7 |
Ø36 H7 |
Ø16 H7 |
| Unit Mounting Dimension ( L1 x W1 ) mm |
80 x 140 |
300 x 150 |
350 x 150 |
400 x 200 |
80x 140 |
| Mounting Pitch Dimension ( L2 x W2 ) mm |
50 x 115 |
125 x 115 |
125 x ( 90x2 ) |
170 x ( 125x2 ) |
50 x 115 |
| Main Body To Spindle Nose ( L3 ) mm |
200 |
167 |
167 |
200 |
---------- |
| Centre Height ( H1 ) mm |
100 |
100 |
100 |
125 |
---------- |
